Model no
24M

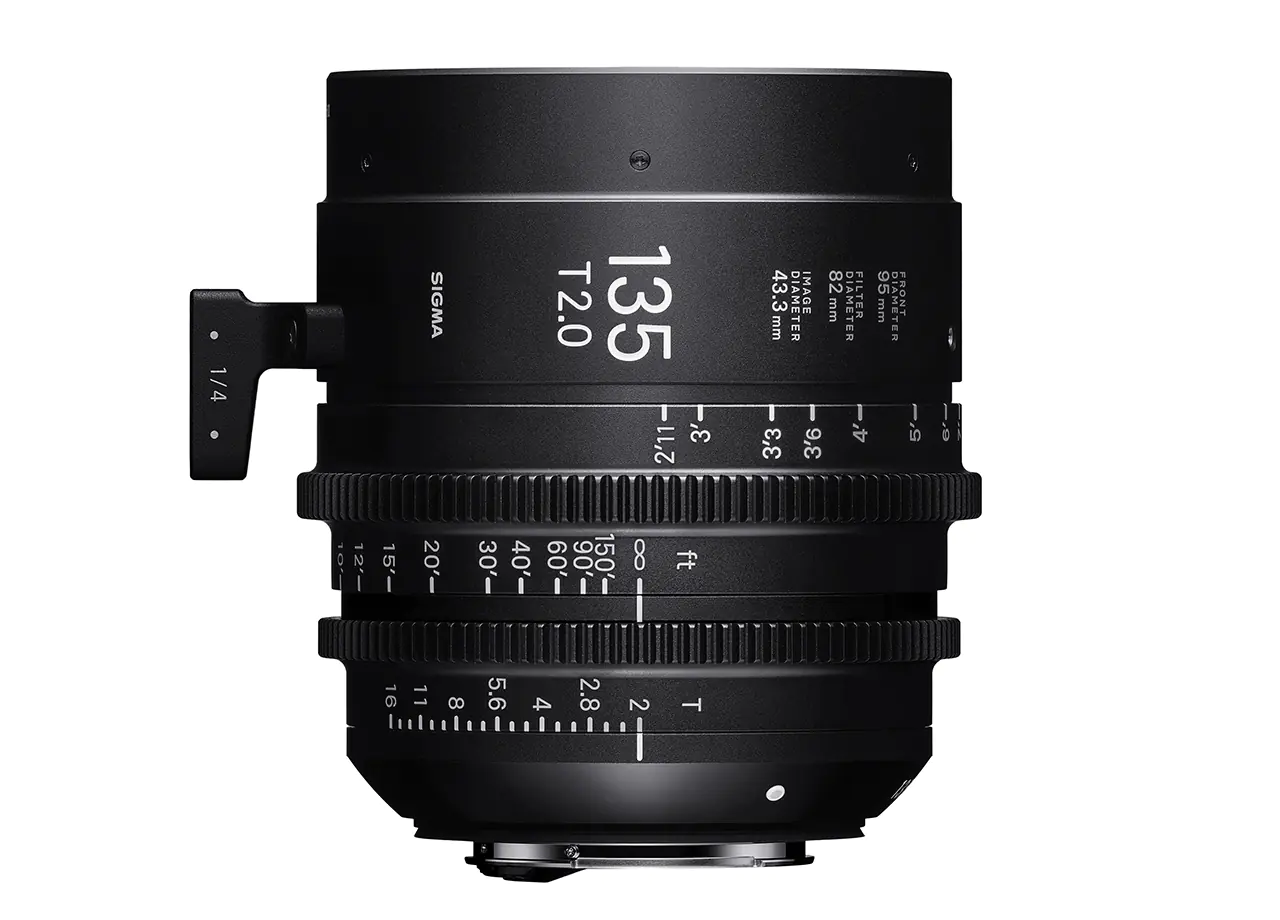

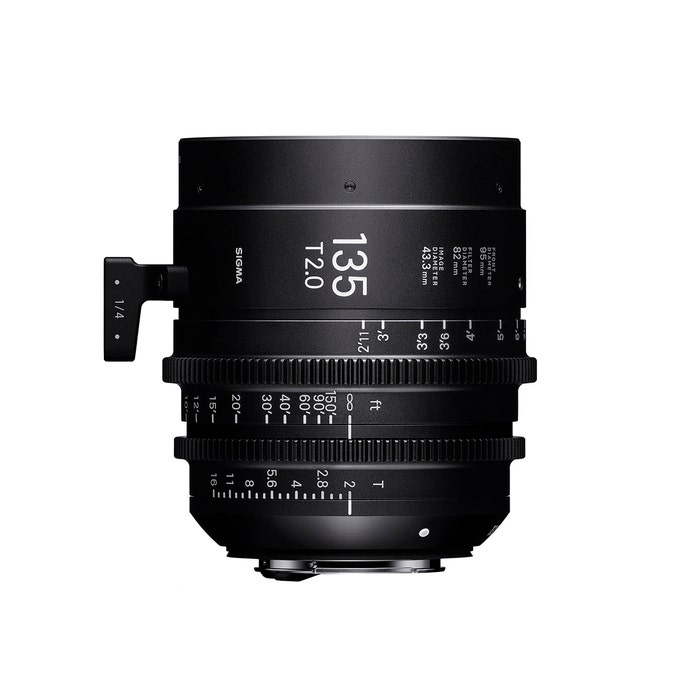

135mm T2 FF

Resolving power like no other

• Bright Full Frame T2 Cine Lens
• Capable of resolving unto 8K
• Available in Canon, Sony E & PL /i Mount
• 180 degree focus rotation

As low as €5.415,00
Specifications
More Information
Focal lenght135 mm
Aperture (T)T2 to T16
Number of diaphragm blades9 (Rounded Diaphragm)
Close focus0.875 m / 2'11"
Image coverageFF ⌀43.3
Front diameter95 mm
size82 mm
FF15.2°
Edition number017
EAN

Canon EF-mount
Sony E-mount
PL-mount

085126934415
085126934446
085126938161

1 - Close focus distance is measured from the image plane
2 - Front to EF mount flange
3 - Front to E-mount flange
4 - Front to PL mount flange
5 - Without lens support foot
6 - Horizontal angle of view for a full-frame camera aperture (aspect ratio 1:1.5, dimensions 36mm × 24mm / 1.42″ × 0.94″)
7 - Horizontal angle of view for a super 35 digital cinema camera aperture (aspect ratio 1:1.8, dimensions 24.6mm × 13.8mm / 0.97″ × 0.54″)
8 - Horizontal angle of view for an APS-C camera aperture (aspect ratio 1:1.5, dimensions 23.7mm × 15.7mm / 0.93″ × 0.62″) The specifications are subject to change without notice.
9 - The three-digit code on the surface of the lens is to indicate the year the lens was first released. (Since it is different from the year of manufacture, the release year and edition number may not match depending on the mount.)
