ELECTRONIC VIEWFINDER EVF-11
• External Electronic Viewfinder compatible with the SIGMA fp and fp L mirrorless digital cameras
• 0.5 inch, approx. 3.58 M dots OLED panel
• High-resolution, high-luminance viewfinder
• Magnification of 0.83x
• 90° upward tilting mechanism

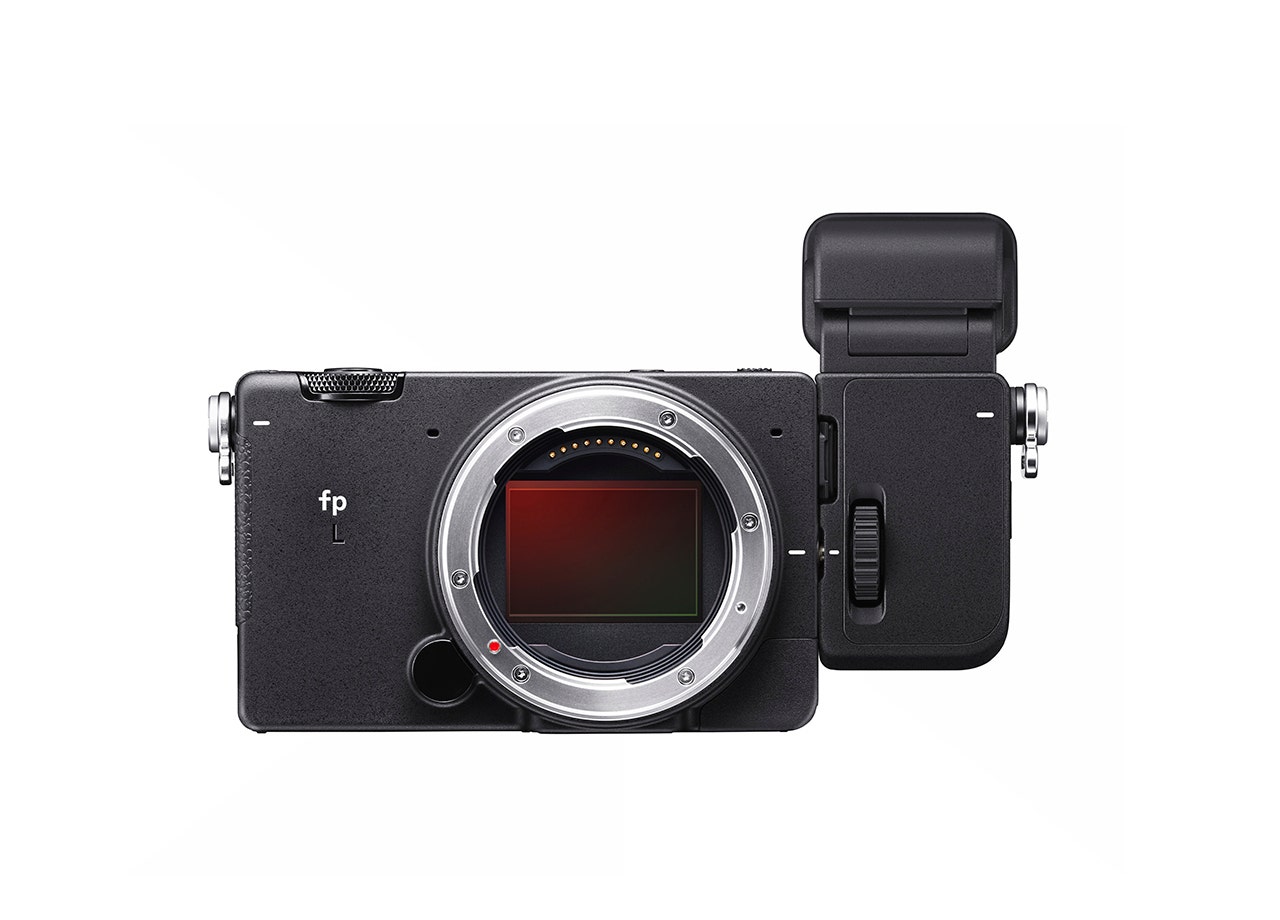

A long-awaited external electronic viewfinder for the SIGMA fp series is here.

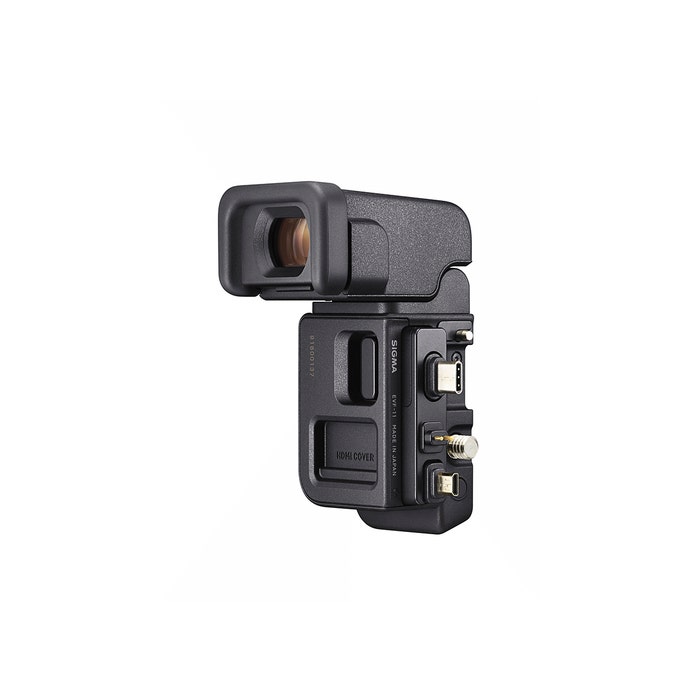

The SIGMA Electronic Viewfinder EVF-11 is an external EVF designed exclusively for use with the SIGMA fp series. With its 0.5 inch, approx. 3.68 M dots OLED panel, this high-resolution, high-luminance viewfinder will help users feel more deeply immersed in their photography and make creating photos a more enjoyable experience. SIGMA's attention to detail is evident in the EVF-11’s tilting mechanism, expandability with external accessories, and highly functional user interface, which is designed to ensure convenience and comfort during use. Together with the SIGMA LCD VIEWFINDER LVF-11 that is already available, the launch of the SIGMA ELECTRONIC VIEWFINDER EVF-11 offers SIGMA fp series users two external viewfinders options as dedicated accessories. As the SIGMA fp series remains true to its concept of being the “world's smallest and lightest* pocketable full-frame camera”, its users can now choose a viewfinder to suit their particular shooting needs.
*As of March 2021, by SIGMA
Large viewfinder for clarity and comfort
The EVF-11 has a 0.5 inch organic electroluminescent diode (OLED) panel with approx. 3.68 M dots of resolution. With a magnification of 0.83x, this high-luminance, high-definition EVF provides excellent visibility and is especially useful in an environment where it is difficult to see the screen clearly. Photographers can use it to frame a shot, review an image and change menu settings smoothly.
90° upward tilting mechanism
The tilting mechanism of the EVF-11, which angles upwards to 90°, enables users to shoot from a low angle more comfortably.
User interface designed for superb visibility and convenience
The EVF-11 has an eye point set at approx. 21 mm to ensure a full field-of-view without a dark vignette around the viewfinder. This helps photographers see the entire scene with complete clarity, even when wearing glasses. It has a wide diopter adjustment range of −4.0 to +3.0 dpt, and comes with two eyecups of different sizes to suit your preference. The EVF is designed for the best visibility, ease of use and comfort for photographers, giving them a complete view of their subject in perfect detail.
Audio monitoring during video capture
A Φ3.5 mm stereo mini jack on the EVF-11 allows users to monitor audio using headphones while shooting video. It is designed so as not to block the camera’s microphone input, meaning users can use an external mic and monitor audio at the same time.
External recording to portable SSD
Users can record to an external SSD drive via the dedicated USB plug (Type-C), which is located on the side of the EVF-11.
• Panel: 0.5 inch OLED panel, approx. 3.68 M dots (Viewfinder Coverage : approx. 100%)
• Magnification: 0.83x (50 mm lens at infinity, −1 dpt)
• Eye Point: Approx. 21 mm (from the back of the eyepiece lens)
• Diopter Adjustment: −4.0 to +3.0 dpt
• Angle Adjustment: 0 to 90°
• LCD/LVF switch
• Camera connecting plug (Detects USB, HDMI and EVF)
• Headphone Output Terminal: Φ3.5 mm stereo mini jack
• External Output Terminals: USB (Type-C) and headphone (Φ3.5 mm stereo mini jack)
*The EVF-11 does not supply power or charge the camera via USB.
*The EVF-11 receives power from the camera.
*The EVF-11 and the HU-11 cannot be mounted on the camera together.
• Dimensions (W x H x D): 44.6 x 91.7 x 56.1 mm (incl, EYECUP EC-31)
• Weight: 114 g (incl. EYECUP EC-31)
|Accessory Type||View Finder|
|USB||USB Type-C x2 : Input and output (for portable SSD only)|
|Headphone output||Φ3.5 mm stereo mini jack|
|Maximum Dimensions||44.6 x 91.7 x 56.1 mm (W x H x D)|
|Weight (g)||114 g|
